サルケージ用自動定量給水システム(ボトル式)
Automatic metered water supply system for monkey cages (Bottle type)

Summary | We are currently working on a plan to automate rearing management in our monkey experimental breeding room. The problem here is water supply method. The monkeys in the experiment are given water in bottles due to water supply restrictions. Therefore, the bottles need to be watered on a daily basis. To solve this problem, we attempted to develop an automatic metered water supply system that can automatically supply a specified amount of water to the bottles and also check the amount of water intake. |
---|---|
用途 | サル飼育室において日々の飲水量を給水ボトルの交換無しでコントロールする |
動作原理 | 水位センサの値をArduinoマイコンで認識しパネル表示する |
使用に関する注意点 |
DC24V電源が必要である ケージのタイプによって取付板を変える必要がある |
ダウンロード |
回路図(water_level_meter1.pdf) Arduino IDEプログラム(water_level_pro1.pdf) |

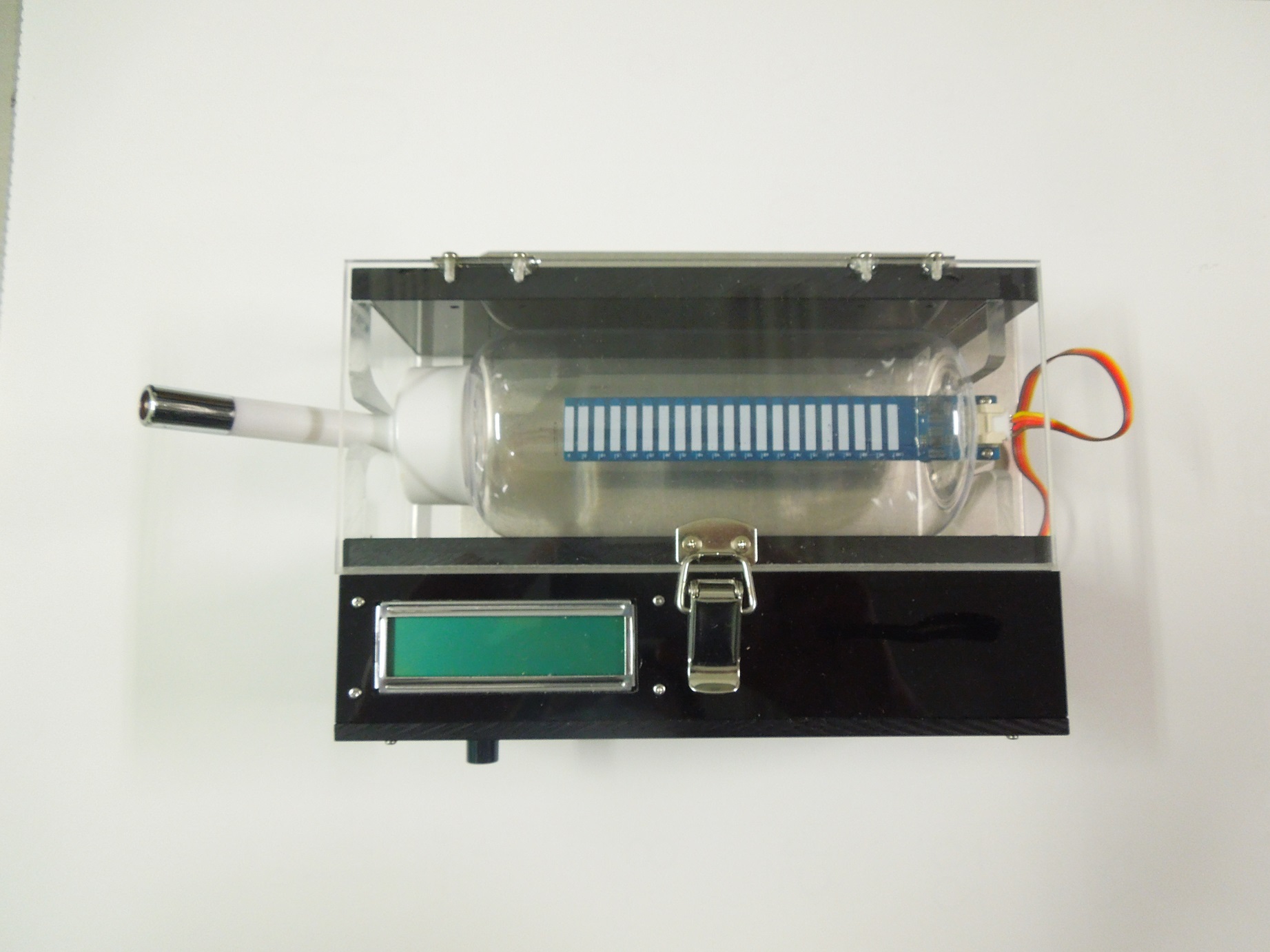

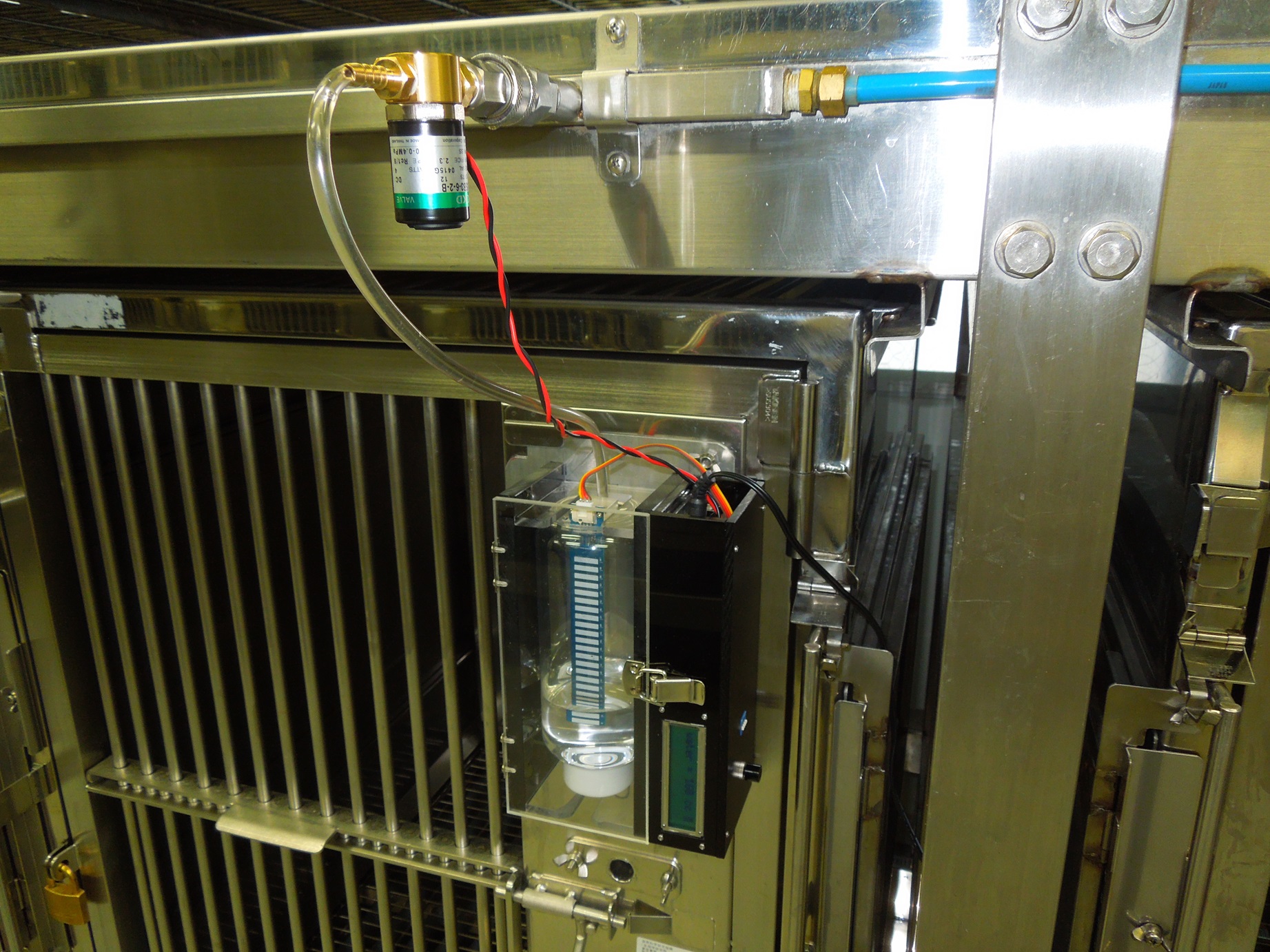

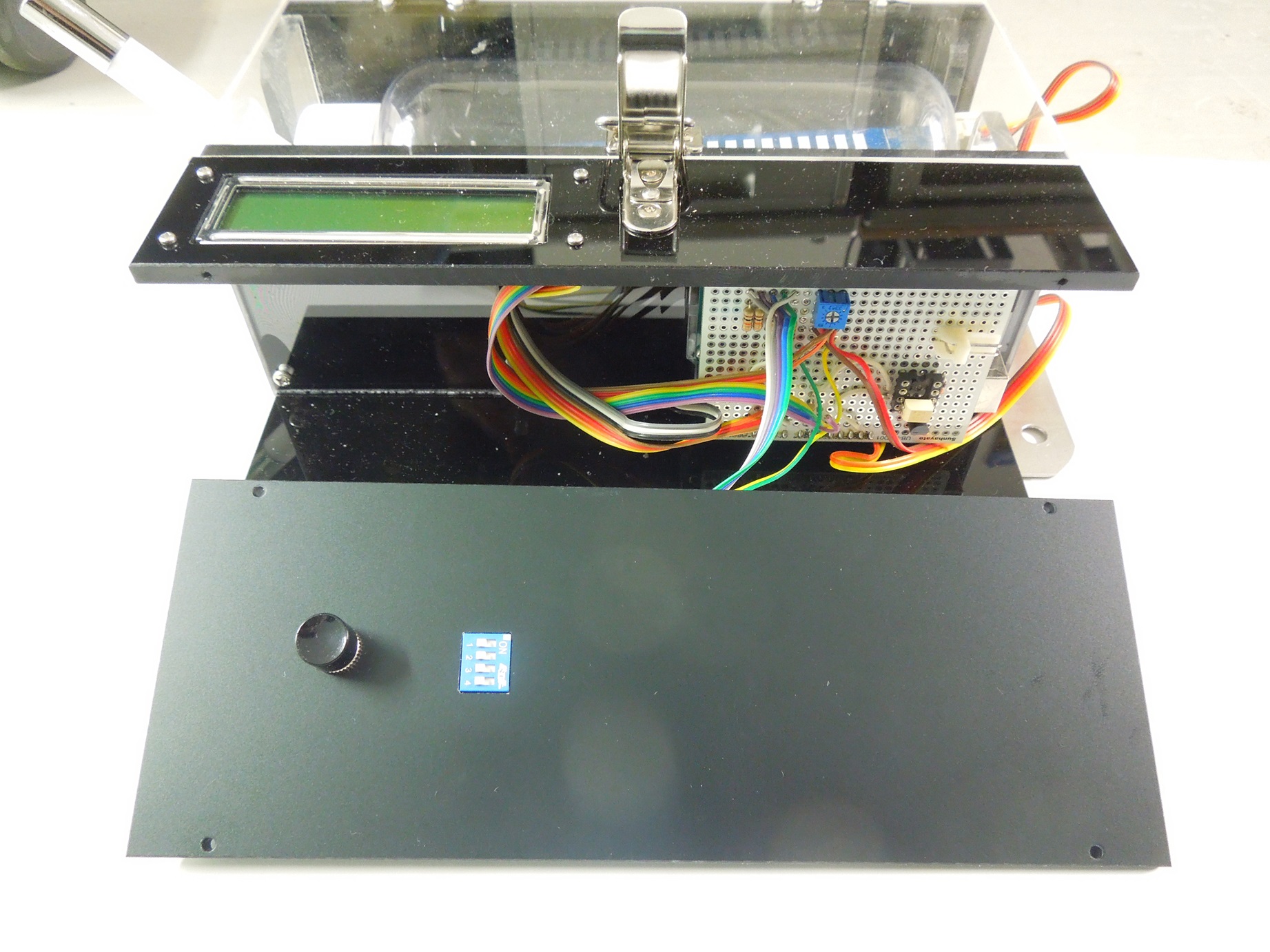

詳細資料 | 写真(設置図、本体1、本体2) |
参考資料 | 戸川森雄(2023) サル飼育室における自動定量給水システムの開発 生理学技術研究会報告 第45号 |
その他 | 第44回生理学技術研究会(2023-02-16,17) 発表 |
