サルケージ用自動定量給水システム(流量センサ式)

Automatic metered water supply system for monkey cages (Flow rate sensor type)
Summary We are currently working on a plan to automate breeding management in the monkey experimental room. The problem here is the water supply method. Due to water restrictions, the monkeys in the experiment were given bottled water. Therefore, the bottle must be watered daily. To solve this problem, we attempted to develop an automatic metered water supply system that uses a flow sensor to automatically supply a specified amount of water without using a bottle.
用途 サル飼育室において日々の飲水量を給水ボトルを使わずにコントロールする
動作原理 流量センサーで水量を検知しマイコン(ESP32)で制御する
使用機器 流量センサー(FD-XS8,FD-XC8R3,FD-XA1_KEYENCE)
ラッチ式電磁弁(WLB-2R-1/4UF_高砂電気)
動作条件、注意点 DC24V電源が必要である
給水ホースは、樹脂製のφ8mmを使用する
ダウンロード 回路図(water_level_meter2.pdf
Arduino IDEプログラム(water_level_pro2.pdf

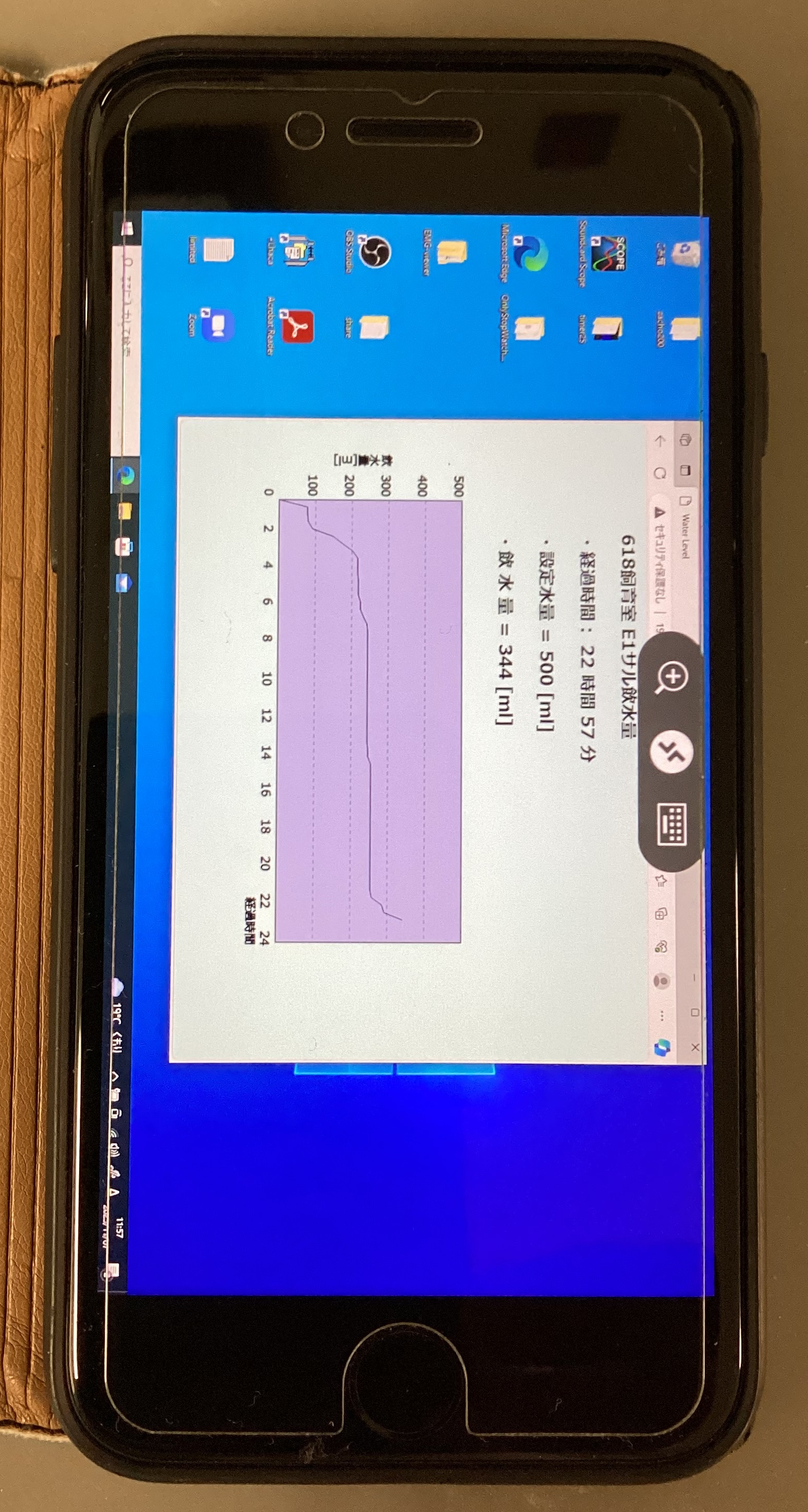

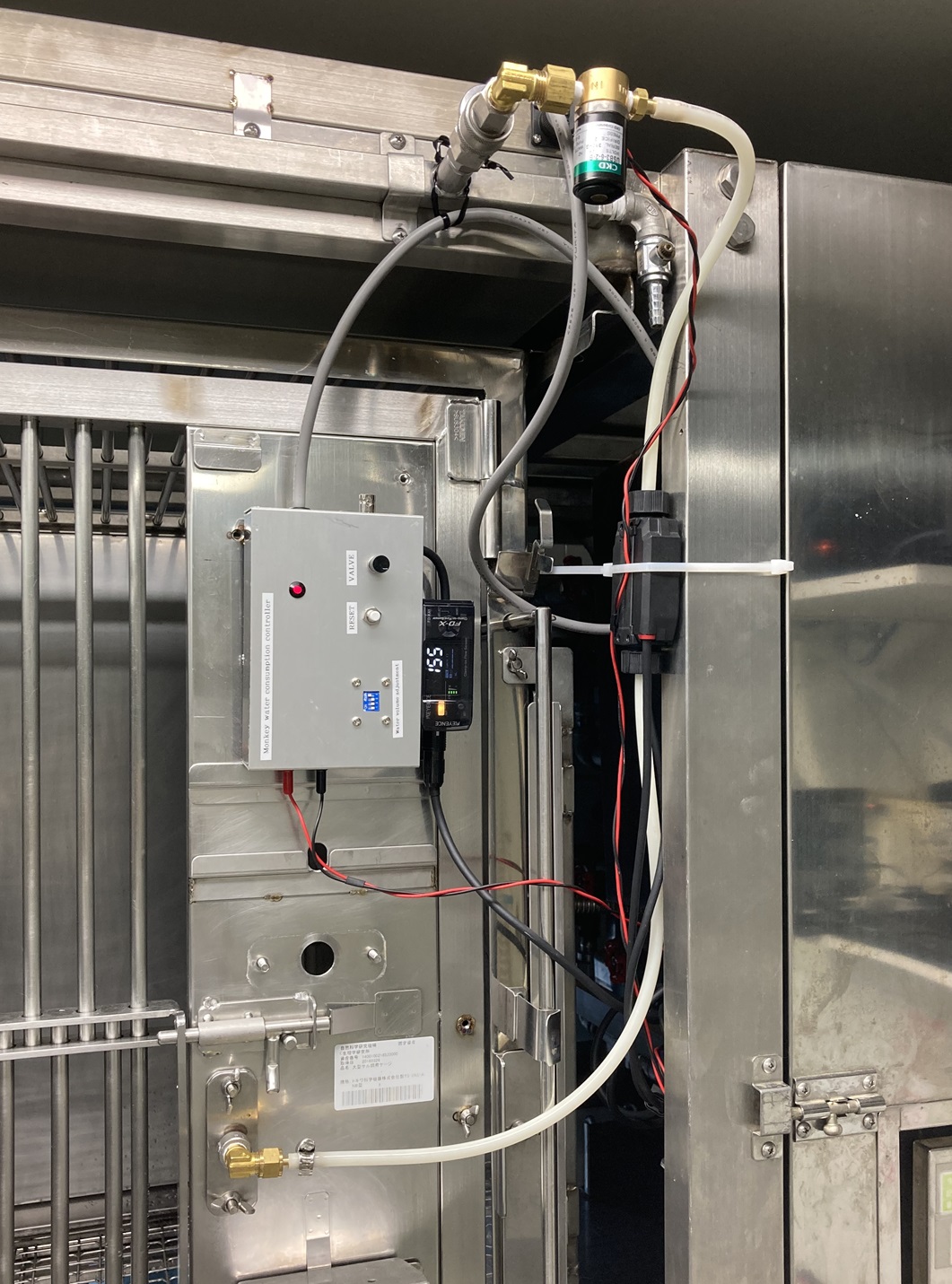

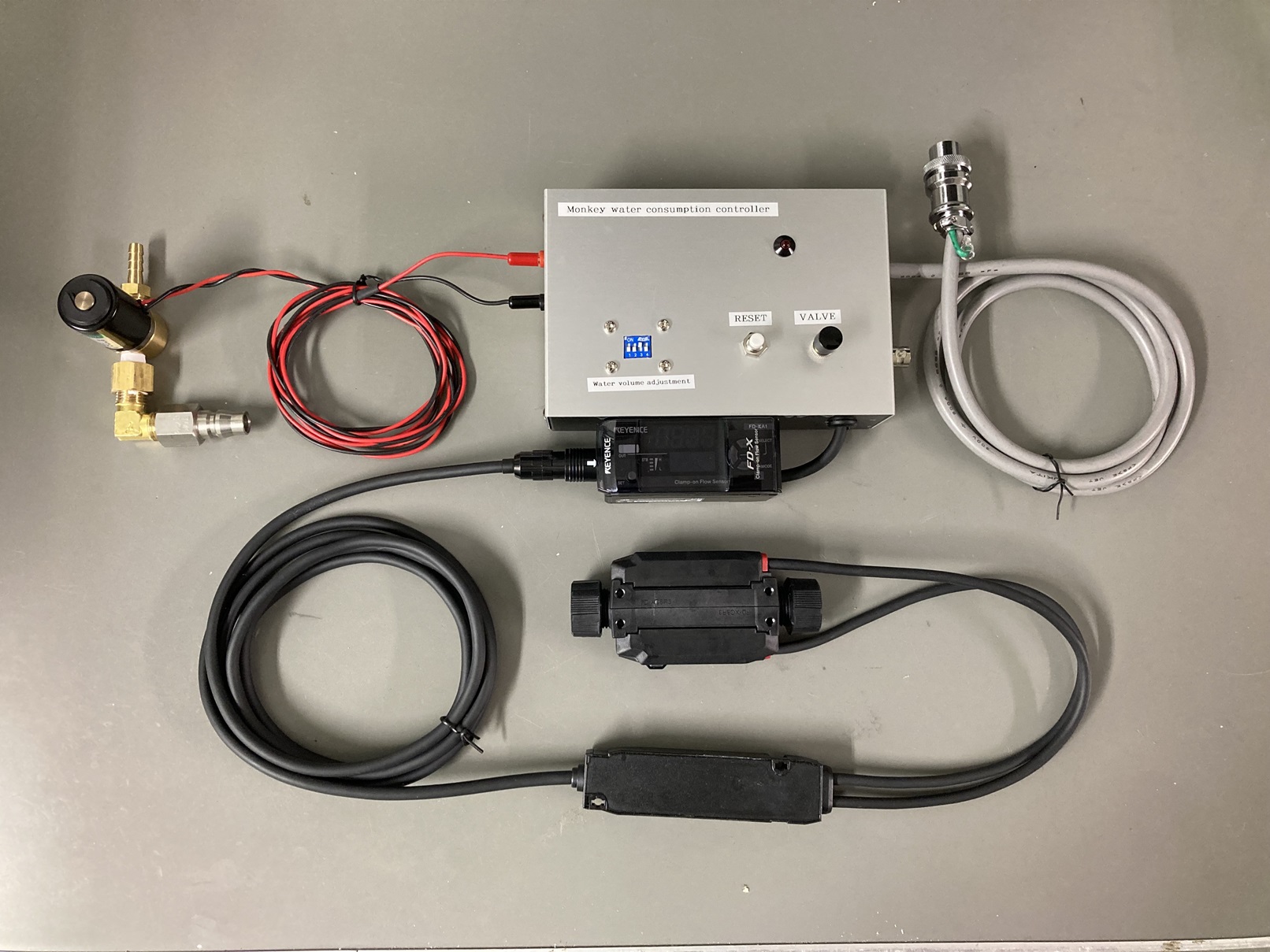

詳細資料 写真(システム図設置図表示画面
参考資料 戸川森雄(2023) サル飼育室における自動定量給水システムの開発    生理学技術研究会報告 第45号
その他 第44回生理学技術研究会(2023-02-16,17) 発表
